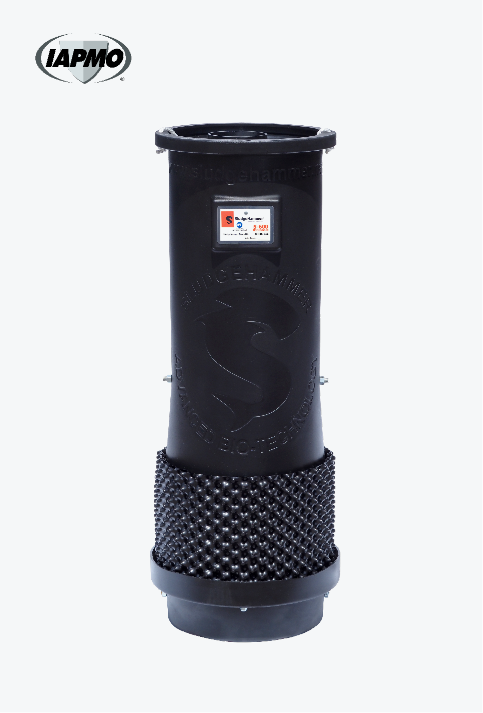

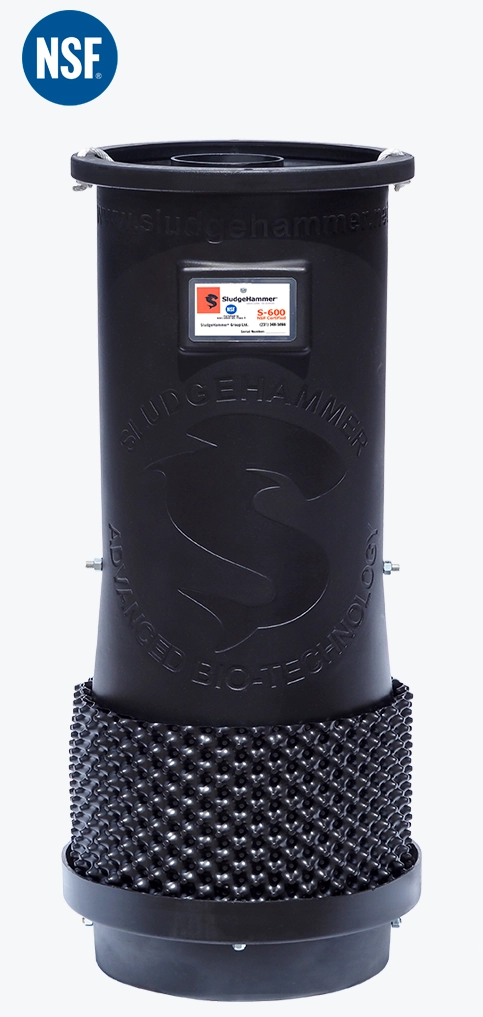

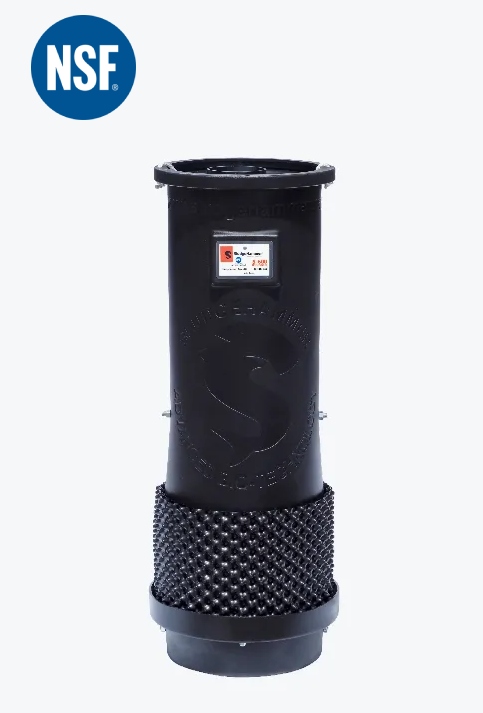

The SludgeHammer® S-600 model is designed to treat domestic wastewater loads of up to 600 gallons per day, making it an ideal solution for larger households or properties with higher wastewater demands. It offers the most economical and effective treatment available, ensuring reliable performance and environmental sustainability.
Designed for large single-family homes and residential applications with increased daily wastewater volumes, the SludgeHammer® S-600 ABG delivers powerful biological treatment performance in a simple, low-maintenance design. With the capacity to treat up to 600 gallons per day (GPD), the S-600 is ideal for properties requiring certified advanced treatment under NSF/ANSI Standard 40, Class 1.
This system integrates seamlessly into new residential infrastructure and is installed in the inlet chamber of a 2,000-gallon double-compartment septic tank. As with other models in the SludgeHammer® line, the S-600 uses a fine-bubble air diffuser to aerate the wastewater, circulating it through the SludgeHammer® column. A proprietary refuge chamber holds the SludgeHammer Blend™—a powerful consortium of oxygen-loving bacteria and enzymes—continuously supplied with aerated liquid to digest organic matter and eliminate clog-forming biomat.
The result: An environmentally friendly, biologically regenerative system that meets strict treatment standards while reducing the long-term maintenance burden on homeowners.
Certified under NSF/ANSI Standard 40, Class 1, the SludgeHammer® S-600 ensures dependable, high-quality effluent and long-lasting septic system performance—without the complexity of traditional mechanical systems.
Designed for very large households where advanced treatment is necessary.
Air is supplied to the SludgeHammer® column via a microfine-bubble diffuser, where it rises and displaces the liquid inside the column. This creates a circulation flow, with liquid entering at the bottom and exiting at the top. A rough filter at the base prevents toilet paper and fecal matter from entering the unit. A packet of proprietary “SludgeHammer® Blend” bacteria and enzymes is introduced into the system and held in a central refuge, continuously supplied with aerated liquid to promote the efficient breakdown of organic matter.
It is estimated that 95% of all septic system failures are caused by biomat clogging. SludgeHammer® technology is rigorously tested and certified to restore leach systems clogged by organic biomat at a rate of at least 2.5 times that of aerobic treatment alone through testing under IAPMO IGC180-2003. SludgeHammer® is the ONLY technology on the market that holds the IAPMO standard.
Eliminate biomat clogging and optimize septic function with the SludgeHammer® S-66. Instead of rebuilding an entire septic system, installing a SludgeHammer® unit allows homeowners to rehabilitate their septic systems at minimal costs.
Applications
System Design
Certifications
Key Benefits
SludgeHammer® Warranty
Meeting environmental and health standards in wastewater treatment is a necessity for public safety. Certified systems protect soil, groundwater, and ecosystems. Partner with SludgeHammer to offer trusted products and help create a healthier environment.

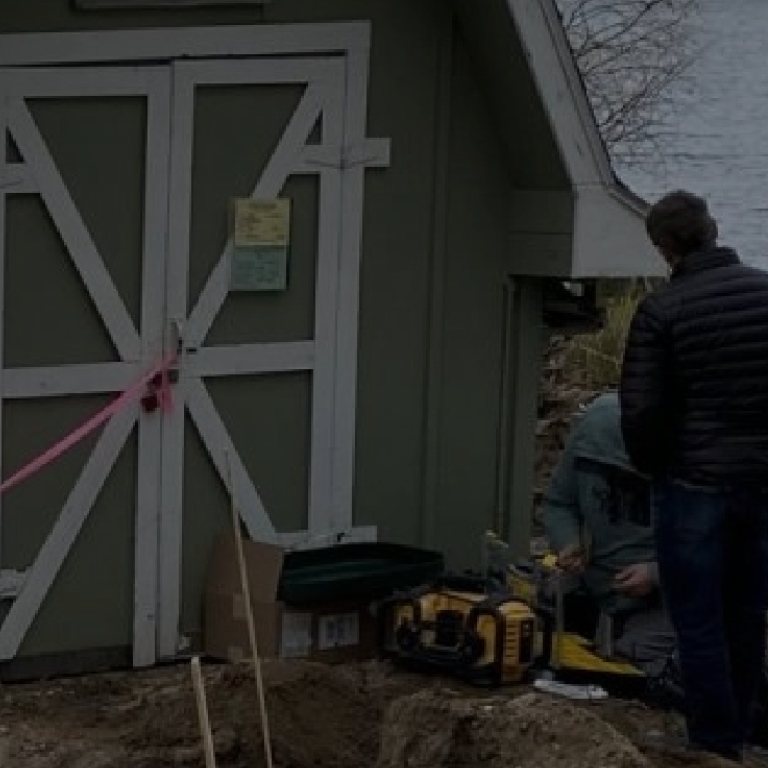

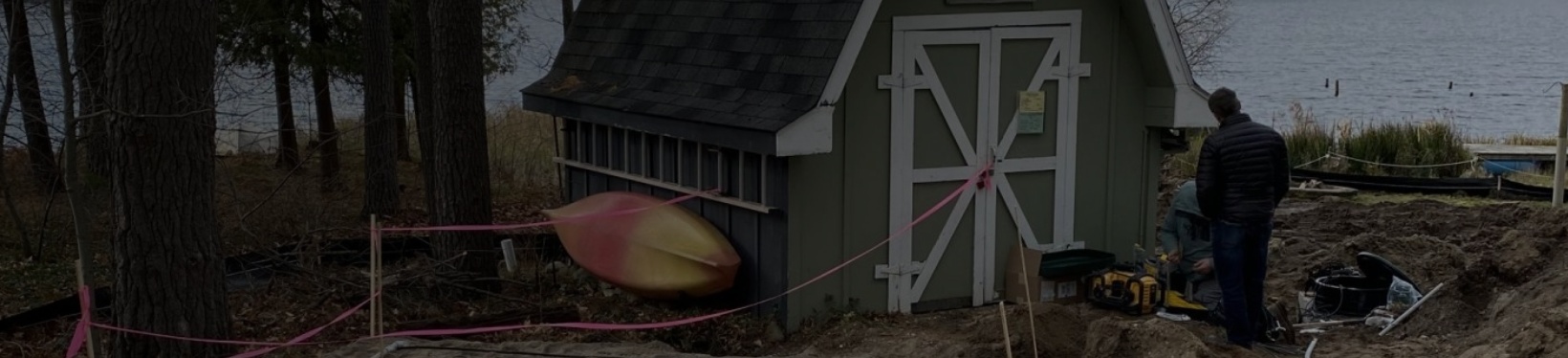

This case study highlights a septic system upgrade in Coloma, Michigan, where a high water table caused system failure. The site presented three major challenges: limited space for installation, a water level near the surface, and a small lot that couldn’t support traditional systems. These issues made a standard septic solution unworkable.
To overcome these challenges, the SludgeHammer® septic system was installed. This system uses air and bacteria to clean effluent inside the septic tank, allowing for smaller pipes, drip irrigation, and eliminating the need for stone or sand. It also enabled a smaller, less intrusive mound, approved by the health department.
Have questions about SludgeHammer® or its products? Browse our most commonly asked questions to find the answers you’re looking for, or reach out to our team for more information.
SludgeHammer® systems have been rigorously tested and certified by the industry’s most elite organizations. We offer a limited lifetime warranty on all technology; however, guarantees cannot be made as we’re unable to control actual daily flows. If harmful substances are introduced to the system or if annual maintenance needs are neglected, issues can arise.
Each SludgeHammer® ABG will take approximately 2-3 hours to install.
Once installation is complete, you can expect the system to fully acclimate within 36 to 72 hours.
Provided you’re using your SludgeHammer® system within its design parameters and maintaining it in accordance with the manufacturer’s recommendations, your system should last indefinitely.
As with any septic system, common knowledge is key. Do not rinse or flush paint into the septic tank, don’t flush handi-wipes or non-degradable materials (including tampons) down the toilet, and ensure cleaning products such as bleach are used in small quantities.
Yes, all systems, including conventional septic systems, require consistent maintenance. SludgeHammer® systems should be maintained annually for residential systems and multi-annually for non-residential systems.
Yes, the bacteria is safe. However, avoiding contact with the eyes and handwashing are always recommended practices when handling any bacteria.
